3kWp/ 20m² ROOF SURFACE AREA REQUIRED FOR UTICA® 3000-3000 MOBILGRID GENERATOR WITH BI-DIRECTIONAL HYBRID LI-ION ENERGY STORAGE SYSTEM CAPABILITIES
- List Price:SGD $17,650.00
- Price:SGD $12,355.00
- You Save:SGD $5,295.00 (30%)
Quality guaranteed with 36 months performance warranty. Images are for illustration purposes only. End product may differ from website and brochure.
Do-It-Yourself (2 Persons Installer) Support Package Includes: 90 minutes of off-site technical installation support via WhatsApp/ WeChat or Skype, schematic drawing, solar panels, PV inverters, structures for solar panels, standard cables and accessories for home solar power generation.
- SGD $12,355.00
In Stock
technical details

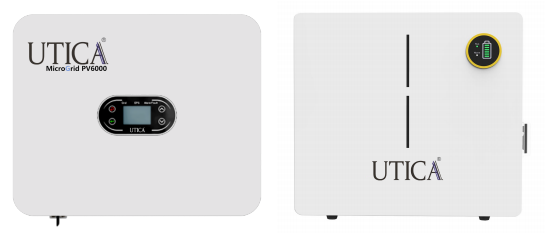

Hybrid Inverter
Technical Data: 3.0K
DC Input(PV)
Max. DC input power(W): 3300
Max. DC input power(V): 550
MPPT range(V): 120-450
Max. input current(A): 13
AC output 1(Grid)
Rated power(W): 3000
Rated grid voltage(V) / Frequency(Hz): 208/220/230/240(single phase) / 50/60
Rated output current(A): 13
AC output 2(Load)
Rated outout power(VA): 3000
Rated output voltage(V) / frequency(Hz): 208/220/230/240(±2%) / 50/60(±2%)
Off-network switching time (ms): ≤10
Battery
Technical Data: 2.4kwh
Rated voltag (V) / range(V): 48/42-58
Battery type: Lithium battery
Max. charging(A) / discharging current(settable)(A): 60/60
Max. efficiency: 94%
Others
Invrter dimention: 610 x 425 x 190mm
Inverter weight: 19kg
Battery dimention: 440 x 410 x 89mm
Battery weight: 24kg
Equipment and Components
Genuine Quality Equipment and Components with Guaranteed Energy Performance
Solar Panel: 320Wp
Total Estimated Area for Solar Panels: 20m²
Panel Size: 1675 x 997 x 38mm
Power Rating Pumpp(Wp): 320W – 10pcs
Rated Current Impp(A): 9.45
Rating Voltage Vmpp(V): 33.9
Characteristics
- 20m² Roof Surface Area Required
- Estimated Output 11.5kWh/Day
- Off grid power supply for places with lack of electricity or unstable utility, or remote area without access to AC electricity
- Backup power supply for hospital, bank, school, church, temple
- Power supply for small business activity
- UPS for typical application required uninterrupted power supply
- Outdoor power supply for lighting, cooking, recreation, farming, fishing
Feature
1) Anti LID and Anti PID solar modules avoid power loss due to degradation (LID, PID).
2) Industry-leading low claims rate of product quality and reliability are backed by low claims rate.
3) Sustainable productions, sustainable products.
4) Solar panel recycling to ensure all products are durable and recyclable.
5) UTICA's solar energy systems can help you to achieve over 20% more power than conventional PV systems.
