14m² Roof Surface Area Required For UTICA® UTC-2 Solar Socket System. Grid-Tied Connection 2kWp Photovoltaic Modules.
- List Price:RMB ¥36,267.75
- Price:RMB ¥29,014.20
- You Save:RMB ¥7,253.55 (20%)
Quality guaranteed with 10 years performance warranty. Images are for illustration purposes only. End product may differ from website and brochure. Please click here to view our photos profile.
Photovoltaic modules apply half-cut cell technology that reduces internal resistance and has a maximum system rating of over 900 voltage and is 100% free from potential induced degradation, avoiding solar energy losses even in the harshest weather conditions.
Do-It-Yourself (2 Persons Installer) Support Package Includes: 90 minutes of off-site technical installation support via WhatsApp/ WeChat or Skype, schematic drawing, solar panels, PV inverters, structures for solar panels, standard cables and accessories for home solar power generation.
- RMB ¥29,014.20
1) Anti LID and Anti PID solar modules avoid power loss due to degradation (LID, PID).
2) Industry-leading low claims rate of product quality and reliability are backed by low claims rate.
3) Sustainable productions, sustainable products.
4) Solar panel recycling to ensure all products are durable and recyclable.
5) UTICA's solar energy systems can help you to achieve over 20% more power than conventional PV systems.
- 10 years warranty for quality & performance
- High performance and efficiency
- Easy commissioning with the “Quick Configuration Guide”
- Complete on-grid management
- Scalable solar module connections

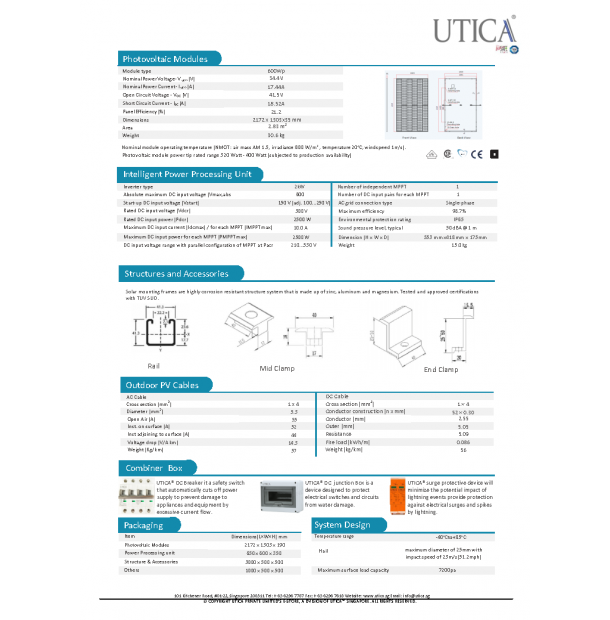

Equipment and Components
Genuine Quality Equipment and Components with Guaranteed Energy Performance
Total Estimated Area for Solar Panel: 14m²
System Capacity: 2.24kWp
Nominal Power (Wp): 320Wp
Gird-Tied Inverter: 2kW
Absolute maximum DC input voltage: 600V
UTICA® Solar Protective Fuse
UTICA® DC Switch Disconnector
UTICA® Surge Protective Device
Solar Panel 320Wp: 7units, Size: 1675 x 997 x 38mm, Weight: 18.5kg/unit
Gird-Tied Inverter 2kW: 1unit, Size: 553 mm x418 mm x 175mm, Weight: 15.0kg
Fuse 15A 1000VDC: 1pc, Size: 80 x 36 x 77mm, Weight: 0.5kg
DC SPD 1000VDC 2P: 1pc, Size: 81 x 54 x 68mm, Weight: 0.5kg
DC 32A Switch Disconnector: 1pc, Size: 100 x 100 x 80mm, Weight: 0.5kg
Mid Clamp: 12sets
End Clamp: 8sets
Aluminum Rail (3000mm): 7sets
Rail Connector: 5sets
(Estimated, subjected to changes)
