UTICA® MICROGRID PV6000 with Li-ion Battery Storage (*Inclusive of PV solar schematic drawings and technical support for installation)

Services

UTICA® MICROGRID PV6000 with Li-ion Battery Storage (*Inclusive of PV solar schematic drawings and technical support for installation)

(1) Review and Comments

Price:SGD $8,900.00

Icons

Icons

Icons

Quality guaranteed with 60 months performance warranty. Images are for illustration purposes only. End product may differ from website and brochure.

* Includes a 6kW hybrid inverter and a 5.12kWh lithium battery.

SGD $8,900.00

In Stock

Quantity

technical details

Download PDF

Equipment and Components

Genuine Quality Equipment and Components with Guaranteed Energy Performance

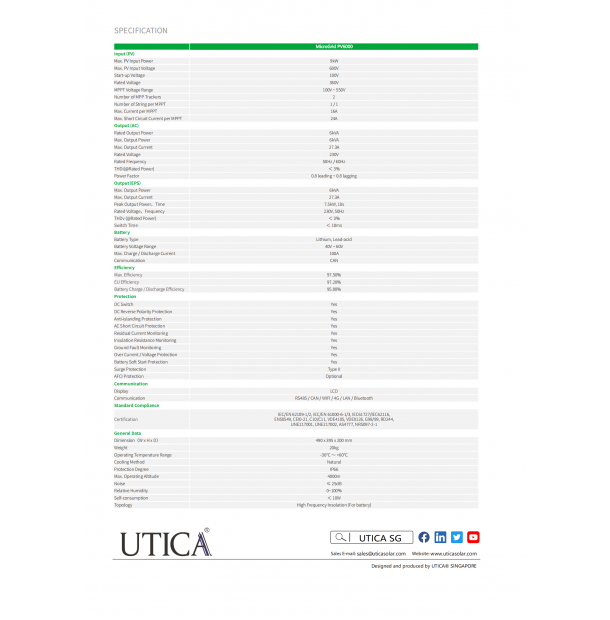

Technical Data: 6.0K
DC Input(PV)
Max. DC input power(W): 9000
Max. DC input power(V): 600
MPPT range(V): 100-550
Max. input current(A): 16 x 2

AC output 1(Grid)
Rated power(W): 6000
Rated grid voltage(V) / Frequency(Hz): 230 / 50/60
Rated output current(A): 27.3

Battery
Technical Data: 5.12kwh
Rated voltag (V) / range(V): 51.2/43.2Vdc~56.6Vdc
Battery type: Lithium battery
Max. charging(A) / discharging current(settable)(A): 100
Max. efficiency: 94%

Others
Invrter dimention: 490 x 395 x 200mm
Inverter weight: 20kg
Battery dimention: 520 x 470 x 141.5mm
Battery weight: 47.2kg

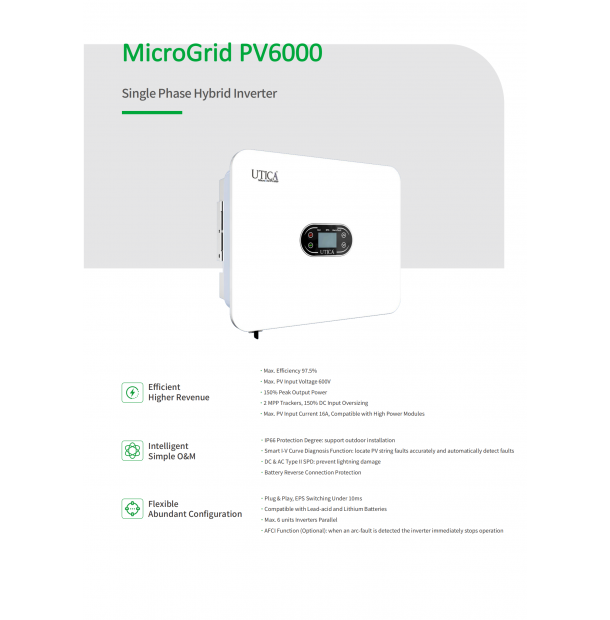

Characteristics

-Max.Efficiency 97.5%
-Max.PV Input Voltage 600V
-150%Peak Output Power
-2 MPP Trackers,150%DC Input Oversizing
-Max.PV Input Current 16A,Compatible with High Power Modules
-IP66 Protection Degree:support outdoor installation
-Smart I-V Curve Diagnosis Function:locate PV string faults accurately and automatically detect faults
-DC AC Type ll SPD:prevent lightning damage
-Battery Reverse Connection Protection
-Plug Play,EPS Switching Under 10ms
-Compatible with Lead-acid and Lithium Batteries
-Max.6 units Inverters Parallel
-AFCI Function (Optional):when an arc-fault is detected the inverter immediately stops operation
