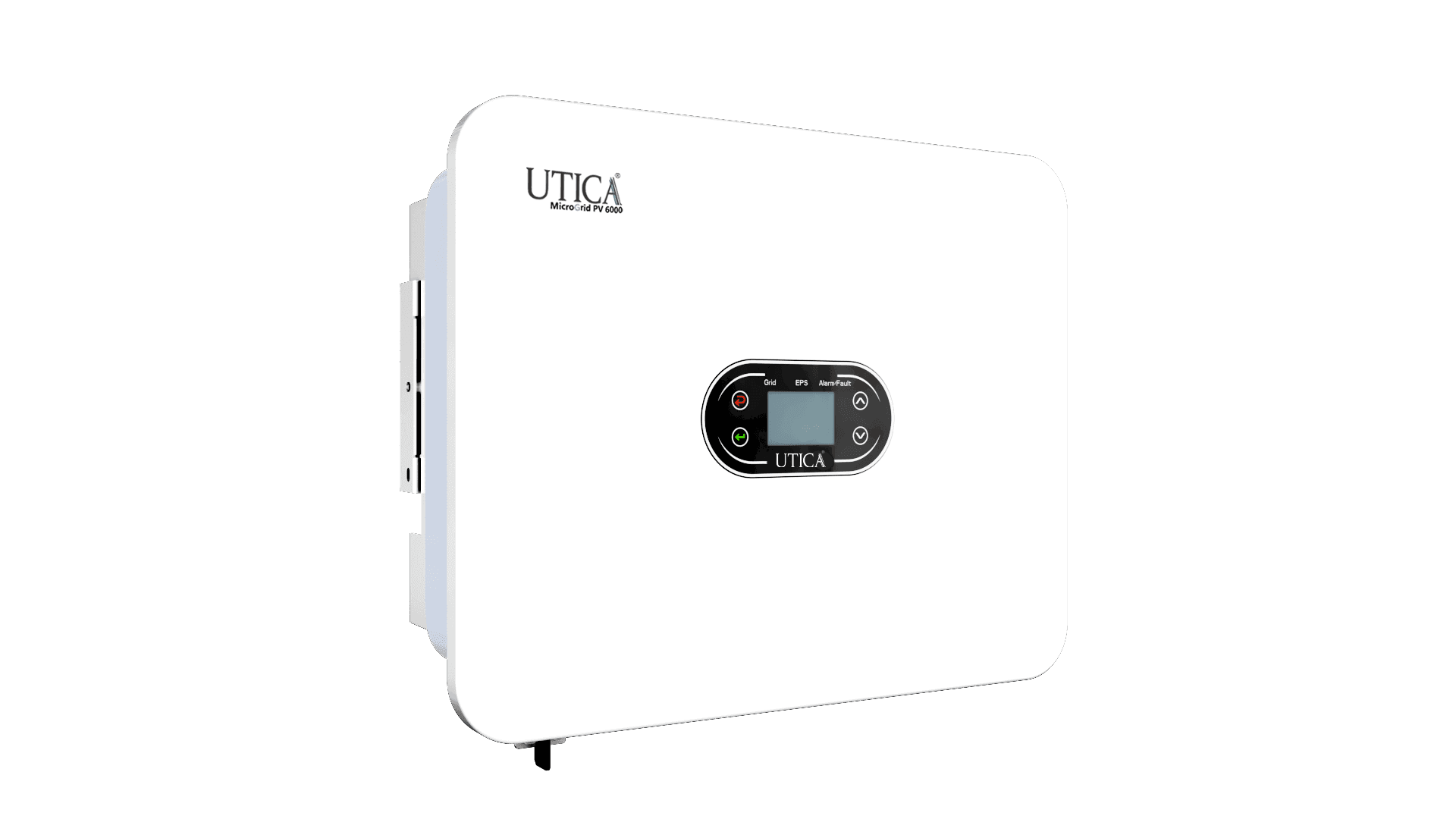

6kW hybrid inverter bundled with 5.12kWh Li-ion battery — includes PV schematic drawings and technical support for installation.

• Max PV Voltage: 600 V
• Efficiency: Up to 97.5%
• Oversizing: 150% DC input oversizing
• MPPT: 2 trackers (100–550 V range)
• Protection: IP66, DC/AC Type II SPD, AFCI (optional)
• Smart: I-V curve diagnosis; fast EPS switching < 10 ms
• Compatible with lead-acid and lithium batteries; up to 6 inverters parallel

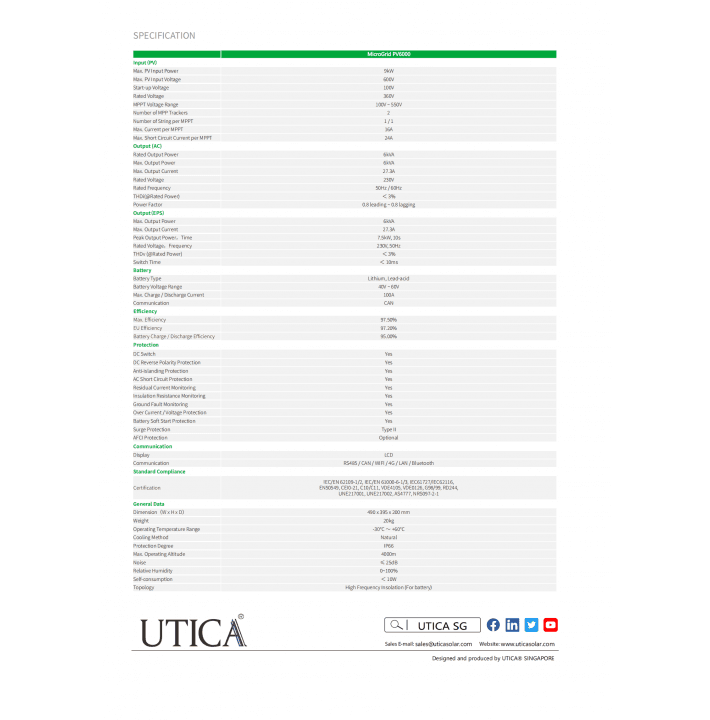

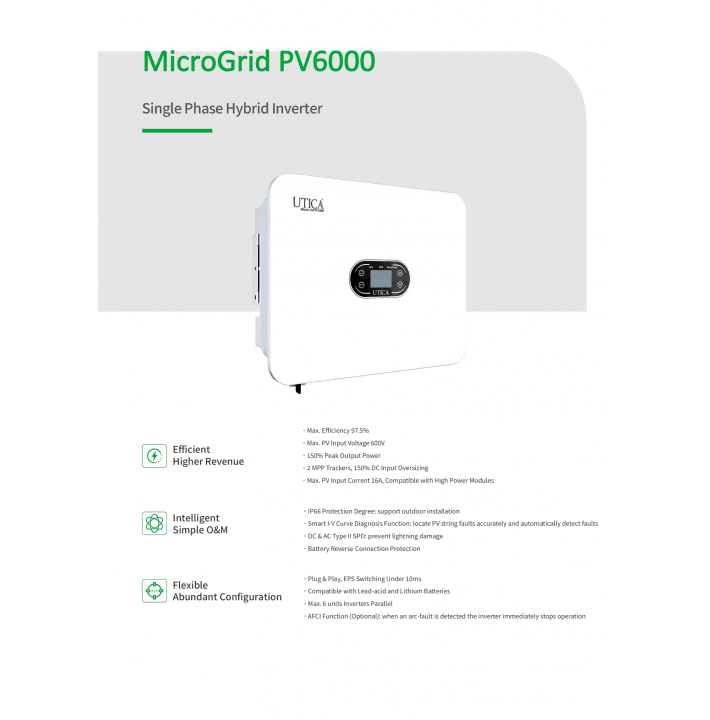

• PV6000 Hybrid Inverter + Battery Datasheet (PDF)453.2 KB
