Aiko+Huawei15

Grid-tied photovoltaic systems with high-efficiency modules, premium components and proven reliability that is engineered for tropical conditions.

Aiko Neostar 3S54
• Made in China
Huawei SUN2000-15
• Made in China

Optimized by UTICA® Singapore

Aiko+Huawei system
data-product-hero
Choose capacity
Price: SGD $11,700.00
15.1kWp•62 m² roof needed
98.7%

Inverter Efficiency

10 years

Product Warranty

25 years

Module Output Warranty

Quality Assurance: 10-year performance warranty. Images are for illustration only; physical images provided after confirmation.

Drag to rotate model. Click panel or inverter for details.

3D model is illustrative and may differ from final installation.

Grid-tied photovoltaic systems with high-efficiency modules, premium components and proven reliability that is engineered for tropical conditions.

Brochure & Datasheets

Aiko+Huawei15

Aiko Neostar 3S54

Aiko Neostar 3S54

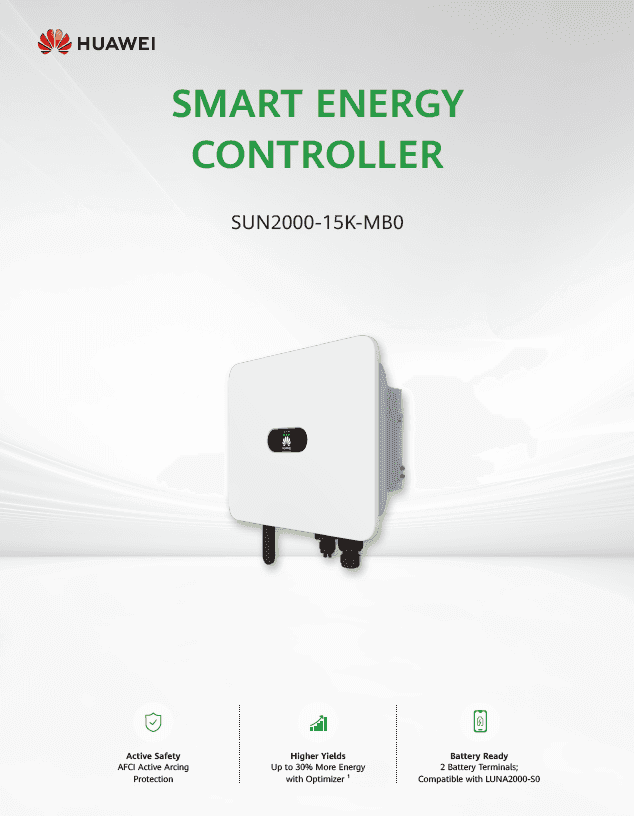

Huawei SUN2000-15

Huawei SUN2000-15

Equipment & Components

Aiko+Huawei15


Core Power Generation

  • AC Output Power: 15 kWp
  • Total Solar Capacity: 15kWp
  • Estimated roof area: 62 m²
  • Single PV module: 485 Wp
  • PV Module quantity: 31 pcs

Core Power Equipment

  • Absolute maximum DC input voltage (Vmax,abs) 1100 V
  • Start-up DC input voltage (Vstart) 250...500V (default 360V)
  • Rated DC input power (Pdcr) 15300 W

System Protection (UTICA®)

  • DC MCB 1000 VDC / 32 A
  • DC SPD 1000 VDC / 40 kA
  • Waterproof protective box

Structure & Mounting

  • Mid & end clamps (35 mm)
  • Aluminium rails & connectors
  • DC/AC cables per system size

Cables for photovoltaic modules

  • The PV-UTM photovoltaic cable offers outstanding resistance to acids, alkalis, UV radiation, temperature extremes, and humidity. It is halogen-free, environmentally friendly, and engineered for an exceptionally long service life.
  • Made in Spain
  • PV1-F: AC: 600/1000V DC: 900/1800V
  • H1Z2Z2-K: AC: 1.0/1.0kV DC: 1.5kV

Passive cooling device

  • Thermal Benefit: Reduces inverter casing temps by up to 12°C
  • Material: UV-resistant aluminum + polycarbonate shield
  • Mounting: niversal bracket fits most UTICA® inverters
  • Durability: Outdoor-rated; salt-mist and corrosion resistant

Technical Data

Total system capacity
15.1kWp
Estimated roof area
62 m²
Single module power
485 Wp
Module quantity
31 pcs
Inverter rated power
15 kW
Inverter max input voltage
1500 V
Protection
DC MCB 1000VDC/32A · DC SPD 1000VDC/40kA
Panel Efficiency
24.3%
Wind Load Resistance
2,400Pa
Weight/Surface Load
5,400Pa

Specs and inclusions may vary. Images are illustrative.
