Core Power Generation
- AC Output Power: 25 kWp
- Total Solar Capacity: 25kWp
- Estimated roof area: 108.5m²
- Single PV module: 720 Wp
- PV Module quantity: 35 pcs
Basic Optimized Series
25kWp Solar Power + 25kW AC Output Power
Every UTICA® Optimized Standard Solar Energy System is designed and configured to provide dependable operation, safety, and consistent long-term performance.
Our smart energy system features the latest Risen Hyper-ion Pro photovoltaic modules manufactured in China with advanced BC (Back Contact) technology for better sunlight absorption and improved energy output; the China-made Solis 3-Phase inverter developed for efficient power conversion and smart energy control; our patented shelter component designed to support system ventilation and operating stability; and our proprietary datalogger connected to the AI-powered Solargaga App for convenient system monitoring, automated management, and customer support.
Risen Hyper-ion Pro
•
• Made in China
Solis 3-Phase
•
• Made in China
Shelter Component
•
• Made in Singapore
Solargaga Datalogger
•
• Made in Singapore
Optimized by UTICA® Singapore
Choose capacity
Now viewing
Basic Optimized Series
25kWp Solar Power + 25kW AC Output Power
Price: SGD $16,250.00
25 kWp•108.5 m² roof required
3 years
Solargaga Customer Care
98.7%
Inverter Efficiency
10 years
Product Warranty
25 years
Module Output Warranty
Product-In-ChargeMr Alex PangView contactHide contact
A UTICA representative is assigned to support this system enquiry.
Quality Assurance: 10-year performance warranty. Images are for illustration only; physical images provided after confirmation.
Drag to rotate model. Click panel or inverter for details.
3D model is illustrative and may differ from final installation.
A balanced grid-tied photovoltaic system offering dependable performance, quality components and excellent value for long-term solar energy generation.
Brochure & Datasheets
Risen+Solis25

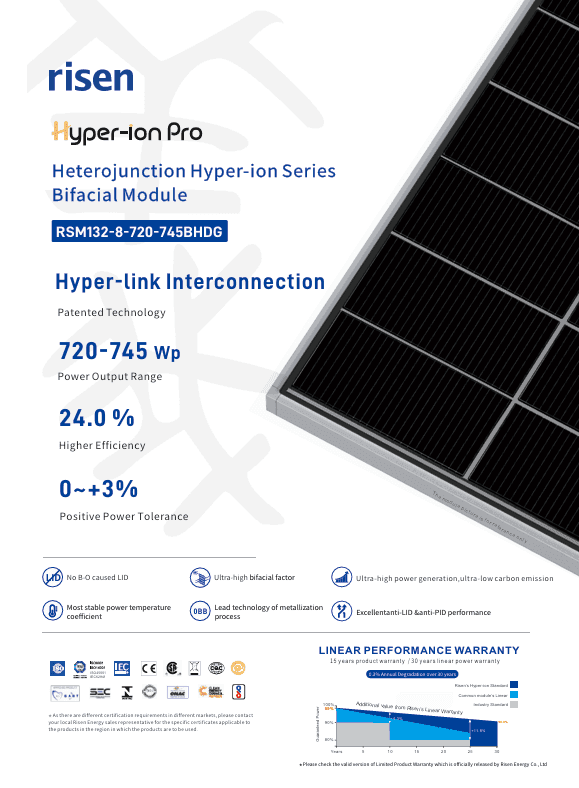

Risen Hyper-ion Pro

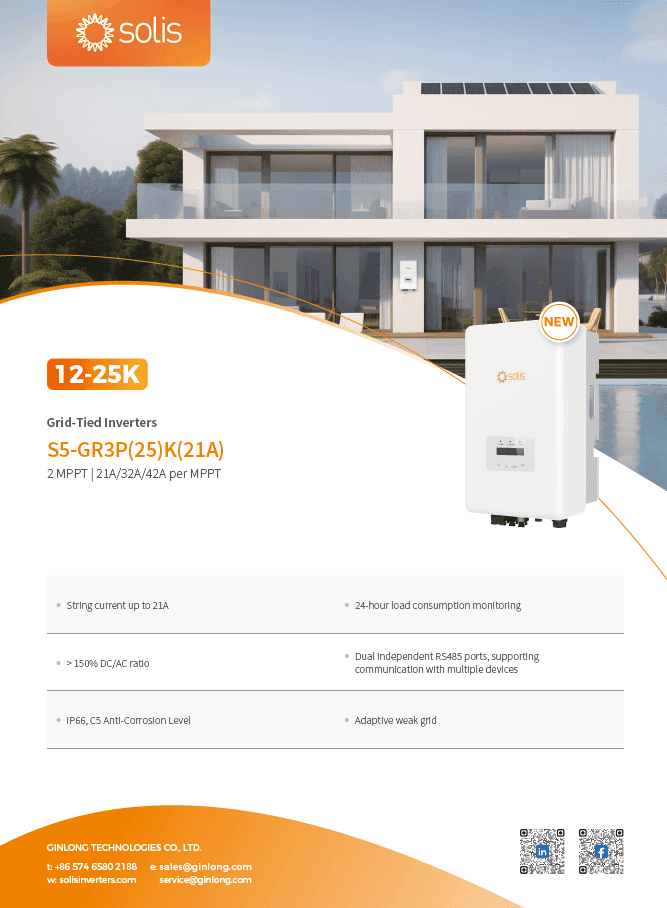

Solis 3-Phase
Equipment & Components
Risen+Solis25
Core Power Equipment
- Absolute maximum DC input voltage (Vmax,abs) 1100 V
- Start-up DC input voltage (Vstart) 250...500V (default 360V)
- Rated DC input power (Pdcr) 25000 W
System Protection (UTICA®)
- DC MCB 1000 VDC / 32 A
- DC SPD 1000 VDC / 40 kA
- Waterproof protective box
Structure & Mounting
- Mid & end clamps (35 mm)
- Aluminium rails & connectors
- DC/AC cables per system size
Cables for photovoltaic modules
- The PV-UTM photovoltaic cable offers outstanding resistance to acids, alkalis, UV radiation, temperature extremes, and humidity. It is halogen-free, environmentally friendly, and engineered for an exceptionally long service life.
- Made in Spain
- PV1-F: AC: 600/1000V DC: 900/1800V
- H1Z2Z2-K: AC: 1.0/1.0kV DC: 1.5kV
Passive cooling component
- Thermal Benefit: Reduces inverter casing temps by up to 12°C
- Material: UV-resistant aluminum + polycarbonate shield
- Mounting: niversal bracket fits most UTICA® inverters
- Durability: Outdoor-rated; salt-mist and corrosion resistant
Technical Data
Total system capacity
25 kWp
Estimated roof area
108.5m²
Single module power
720 Wp
Module quantity
35 pcs
Inverter rated power
25kW
Inverter max input voltage
1100 V
Protection
DC MCB 1000VDC/32A · DC SPD 1000VDC/40kA
Panel Efficiency
23.2%
Wind Load Resistance
2,400Pa
Weight/Surface Load
5,400Pa
Specs and inclusions may vary. Images are illustrative.
