Jinko+Sungrow

10kWp Solar Power + 10kW AC Output Power

Every UTICA® Optimized Standard Solar Energy System is designed and configured to provide dependable operation, safety, and consistent long-term performance.

Our smart energy system features the latest Jinko Tiger Neo photovoltaic modules manufactured in China with advanced BC (Back Contact) technology for better sunlight absorption and improved energy output; the China-made Sungrow 3-Phase SG inverter developed for efficient power conversion and smart energy control; our patented shelter component designed to support system ventilation and operating stability; and our proprietary datalogger connected to the AI-powered Solargaga App for convenient system monitoring, automated management, and customer support.

Jinko Tiger Neo
• Made in China
Sungrow 3-Phase SG
• Made in China
Shelter Component
• Made in Singapore
Solargaga Datalogger
• Made in Singapore

Optimized by UTICA® Singapore

Standard Optimized Series
data-product-hero
Choose capacity
Price: SGD $7,000.00
10.4kWp•43.2 m² roof required
98.7%

Inverter Efficiency

10 years

Product Warranty

25 years

Module Output Warranty

Quality Assurance: 10-year performance warranty. Images are for illustration only; physical images provided after confirmation.

Drag to rotate model. Click panel or inverter for details.

3D model is illustrative and may differ from final installation.

Brochure & Datasheets

Jinko+Sungrow10

Jinko Tiger Neo

Jinko Tiger Neo

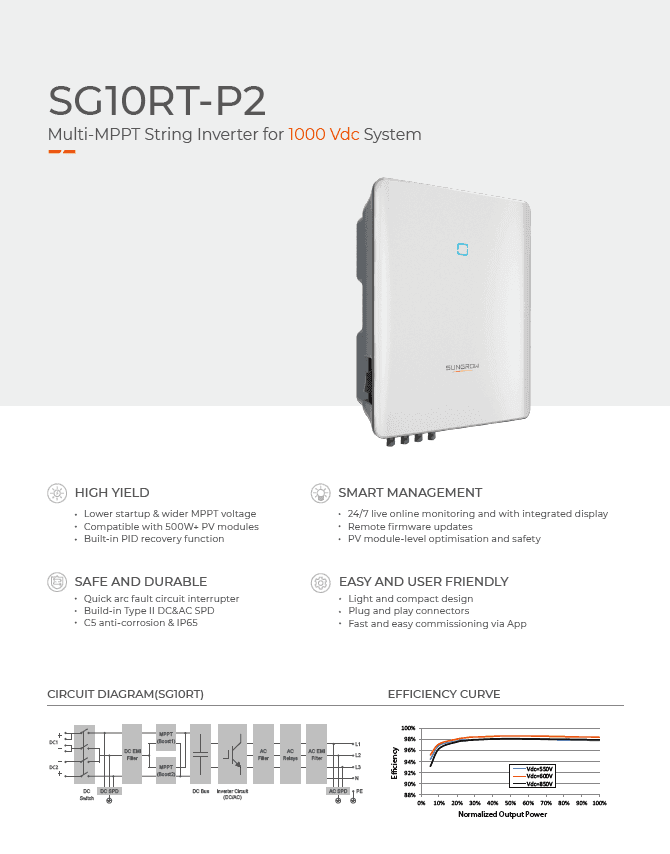

Sungrow 3-Phase SG

Sungrow 3-Phase SG

Equipment & Components

Jinko+Sungrow10


Core Power Generation

  • AC Output Power: 10 kWp
  • Total Solar Capacity: 10.4 kWp
  • Estimated roof area: 43.2 m²
  • Single PV module: 650 Wp
  • PV Module quantity: 16 pcs

Core Power Equipment

  • Absolute maximum DC input voltage (Vmax,abs) 1000 V
  • Start-up DC input voltage (Vstart) 250...500V (default 360V)
  • Rated DC input power (Pdcr) 10000 W

System Protection (UTICA®)

  • DC MCB 1000 VDC / 32 A
  • DC SPD 1000 VDC / 40 kA
  • Waterproof protective box

Structure & Mounting

  • Mid & end clamps (35 mm)
  • Aluminium rails & connectors
  • DC/AC cables per system size

Cables for photovoltaic modules

  • The PV-UTM photovoltaic cable offers outstanding resistance to acids, alkalis, UV radiation, temperature extremes, and humidity. It is halogen-free, environmentally friendly, and engineered for an exceptionally long service life.
  • Made in Spain
  • PV1-F: AC: 600/1000V DC: 900/1800V
  • H1Z2Z2-K: AC: 1.0/1.0kV DC: 1.5kV

Passive cooling device

  • Thermal Benefit: Reduces inverter casing temps by up to 12°C
  • Material: UV-resistant aluminum + polycarbonate shield
  • Mounting: niversal bracket fits most UTICA® inverters
  • Durability: Outdoor-rated; salt-mist and corrosion resistant

Technical Data

Total system capacity
10.4kWp
Estimated roof area
43.2m²
Single module power
650 Wp
Module quantity
16 pcs
Inverter rated power
10 kW
Inverter max input voltage
1100 V
Protection
DC MCB 1000VDC/32A · DC SPD 1000VDC/40kA
Panel Efficiency
24.06%

Specs and inclusions may vary. Images are illustrative.
