UTICA
Product Category

REC+Fimer20

Every UTICA® Optimized Solar Energy System is passionately designed, well-balanced, and packaged for optimal performance, safety, and reliability. Our enhanced smart systems feature REC Alpha Pure-RX solar panels manufactured in Singapore, the Italy-made Fimer PVS20 inverter engineered for tropical performance, a patented external PV cool shelter for improved operating efficiency, and an integrated datalogger connected to the AI SolarGaga App for enhanced automated system efficiency, monitoring, and customer service.

REC Alpha Pure-RX
• Made in Singapore
Fimer PVS-20
• Made in Italy

Optimized by UTICA® Singapore

UTICA® Terry Power System
data-product-hero
Choose capacity
Price: SGD $17,785.00
20.21kWp • 90 m² roof needed
98.7%

Inverter Efficiency

10 years

Product Warranty

25 years

Module Output Warranty

Quality Assurance: 10-year performance warranty. Images are for illustration only; physical images provided after confirmation.

Highlights

REC+Fimer20

Rooftop Array

High-efficiency module layout with clean cable runs for a premium finish.

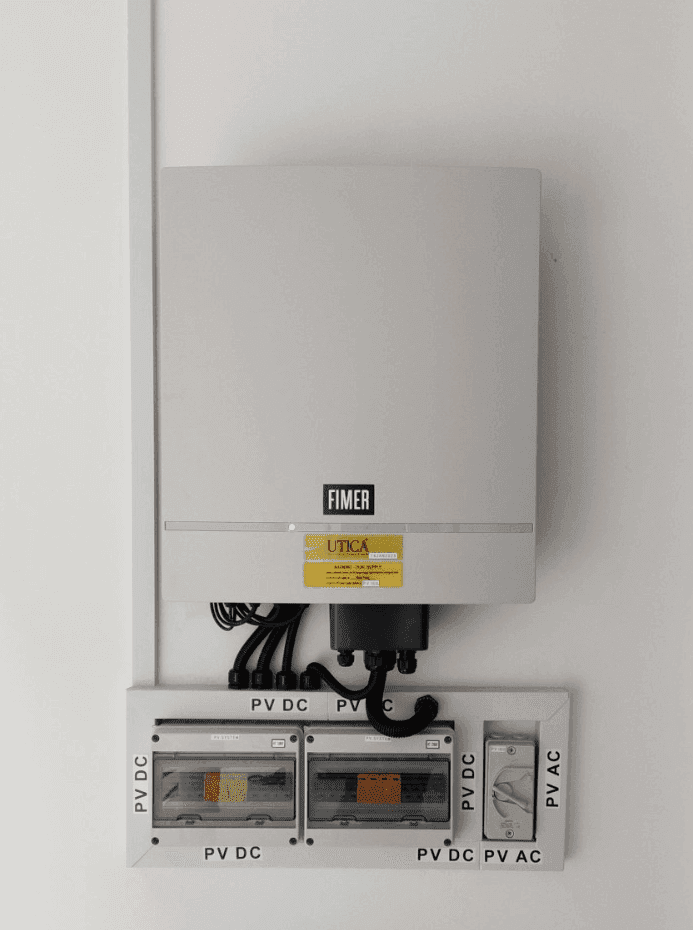

Inverter & Balance of System

Neat, weather-protected mounting with DC protection and tidy junctions.

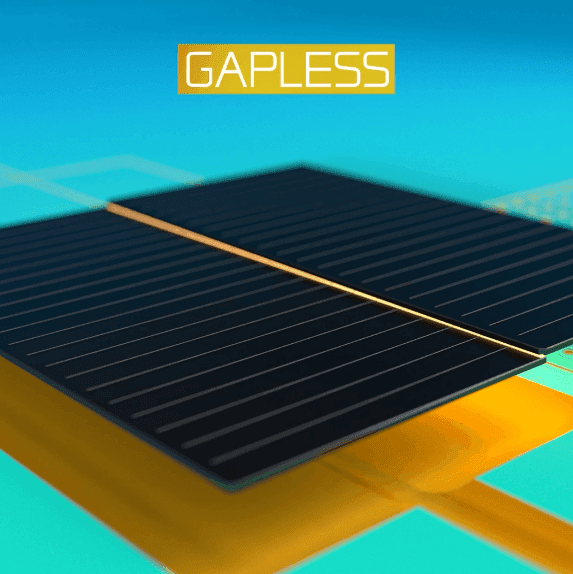

HJT High-Efficiency

Heterojunction cells with ultra-low internal resistance for superior energy conversion.

Reliability & Safety

Anti-PID/LID design, system rated voltage >1000 V, and low temperature coefficient for stable output.

Drag to rotate model. Click panel or inverter for details.

3D model is illustrative and may differ from final installation.

Grid-tied photovoltaic systems with high-efficiency modules, premium components and proven reliability that is engineered for tropical conditions.

Brochure & Datasheets

REC+Fimer20

REC Alpha Pure-RX

REC Alpha Pure-RX

UTICA® PVS-20

UTICA® PVS-20

Equipment & Components

REC+Fimer20

Web_DS_REC Alpha Pure-RX_EN_页面_1.jpg

Core Power Generation

  • AC Output Power: 20 kWp
  • Total Solar Capacity: 20 kWp
  • Estimated roof area: 90 m²
  • Single PV module: 420-470 Wp (Subjected to manufacturer)
  • PV Module quantity: 43-48 pcs

Core Power Equipment

  • Absolute maximum DC input voltage (Vmax,abs) 1100 V
  • Start-up DC input voltage (Vstart) 250...500V (default 360V)
  • Rated DC input power (Pdcr) 15300 W

System Protection (UTICA®)

  • DC MCB 1000 VDC / 32 A
  • DC SPD 1000 VDC / 40 kA
  • Waterproof protective box

Structure & Mounting

  • Mid & end clamps (35 mm)
  • Aluminium rails & connectors
  • DC/AC cables per system size

Cables for photovoltaic modules

  • The PV-UTM photovoltaic cable offers outstanding resistance to acids, alkalis, UV radiation, temperature extremes, and humidity. It is halogen-free, environmentally friendly, and engineered for an exceptionally long service life.
  • Made in Spain
  • PV1-F: AC: 600/1000V DC: 900/1800V
  • H1Z2Z2-K: AC: 1.0/1.0kV DC: 1.5kV

Technical Data

Total system capacity
20.21 kWp
Estimated roof area
90m²
Single module power
420-470 Wp (Subjected to manufacturer)
Module quantity
43-48 pcs
Inverter rated power
20 kWp
Inverter max input voltage
2000 V
Protection
DC MCB 1000VDC/32A · DC SPD 1000VDC/40kA
Panel Efficiency
22.6%
Wind Load Resistance
2,400Pa
Weight/Surface Load
7,200Pa

Specs and inclusions may vary. Images are illustrative.
