Singapore
Rooftop Array
High-efficiency module layout with clean cable runs for a premium finish.
UTICA® Terry Power15
Every UTICA® Smart Solar Energy System is passionately engineered and assembled in Singapore. Our smart systems feature REC Alpha Pure-RX solar panels manufactured locally, and the UTICA® MicroGrid PV6000 inverter designed for tropical performance.
REC Alpha Pure-RX• Made in Singapore
UTICA® MicroGrid PV6000• Singapore Innovation
Designed and Produced by UTICA® Singapore
Choose capacity
Price: SGD $13,464.00
15.3 kWp • 75 m² roof needed
98.7%
Inverter Efficiency
10 years
Product Warranty
25 years
Module Output Warranty
Quality Assurance: 10-year performance warranty. Images are for illustration only; physical images provided after confirmation.
Highlights
Terry Power15
Inverter & Balance of System
Neat, weather-protected mounting with DC protection and tidy junctions.
HJT High-Efficiency
Heterojunction cells with ultra-low internal resistance for superior energy conversion.
Reliability & Safety
Anti-PID/LID design, system rated voltage >1000 V, and low temperature coefficient for stable output.
Drag to rotate model. Click panel or inverter for details.
3D model is illustrative and may differ from final installation.
Grid-tied photovoltaic systems with high-efficiency modules, premium components and proven reliability that is engineered for tropical conditions.
Brochure & Datasheets
Terry Power15
REC Alpha Pure-RX
""

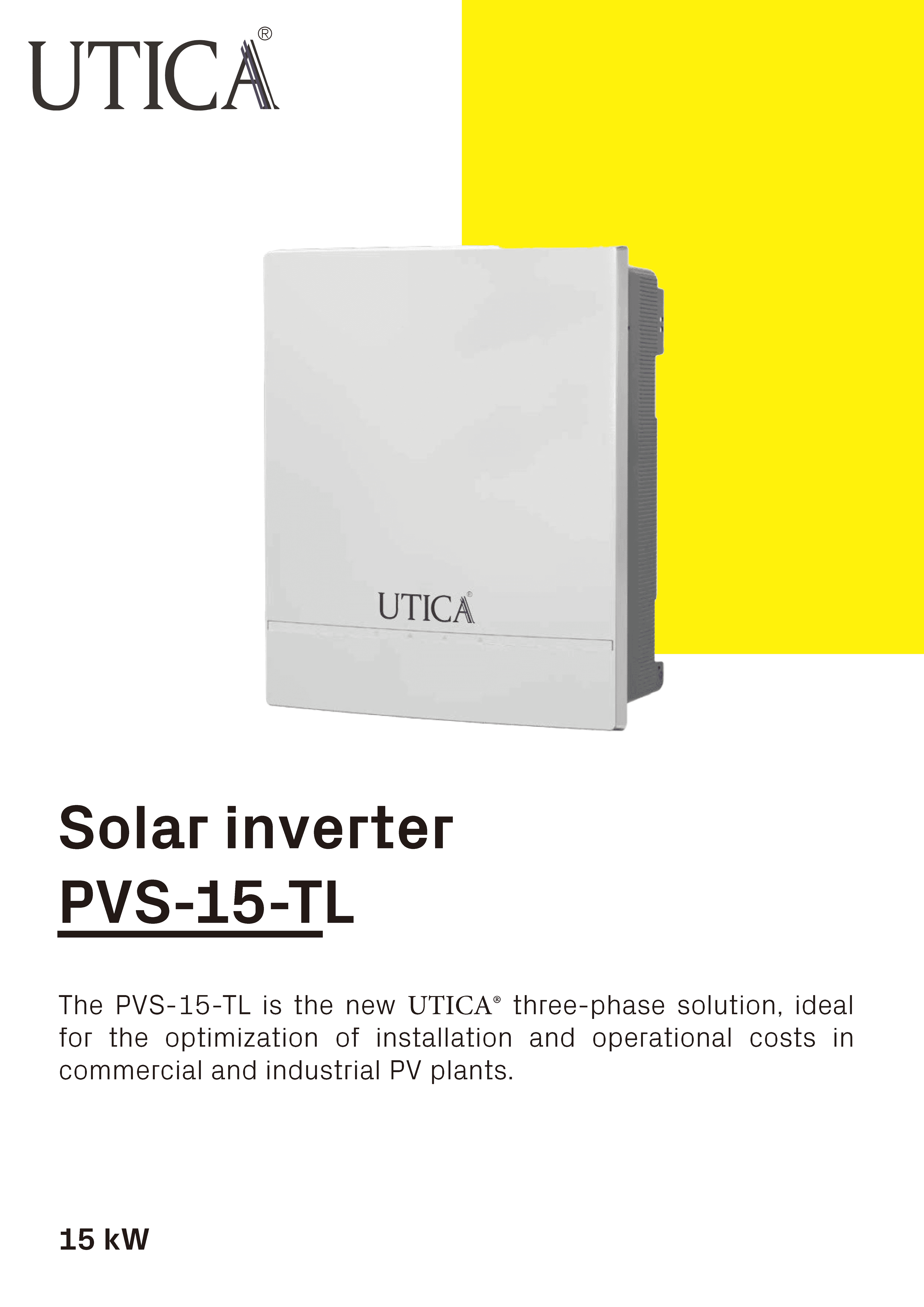

UTICA® PVS-15
""
Equipment & Components
Terry Power15
Core Power Generation
- AC Output Power: 15 kWp
- Total Solar Capacity: 15kWp
- Estimated roof area: 75 m²
- Single PV module: 420-470 Wp (Subjected to manufacturer)
- PV Module quantity: 32-36 pcs
Core Power Equipment
- Absolute maximum DC input voltage (Vmax,abs) 1100 V
- Start-up DC input voltage (Vstart) 250...500V (default 360V)
- Rated DC input power (Pdcr) 15300 W
System Protection (UTICA®)
- DC MCB 1000 VDC / 32 A
- DC SPD 1000 VDC / 40 kA
- Waterproof protective box
Efficiency Upgrade (UTICA®)
- Optimizer Suite: Rapid 800
- Power output(Max): 850 Wp
- Open voltage: 14~60 V
- Short circuit current: 23 A
- Working voltage: 14~60 V
- Working current: 21 A
- Dimension: 130.3 x 109.6 x 25 mm
Structure & Mounting
- Mid & end clamps (35 mm)
- Aluminium rails & connectors
- DC/AC cables per system size
Cables for photovoltaic modules
- This photovoltaic cable PV1-F exhibits excellent resistance to acids and alkalis, as well as resistance to high and low temperature impacts and humidity. It is halogen-free, environmentally friendly, and has a long service life.
- Made in Spain
- PV1-F: AC: 600/1000V DC: 900/1800V
- H1Z2Z2-K: AC: 1.0/1.0kV DC: 1.5kV
Technical Data
Total system capacity
15.3 kWp
Estimated roof area
75 m²
Single module power
420-470 Wp (Subjected to manufacturer)
Module quantity
27 pcs
Inverter rated power
6 kW
Inverter max input voltage
600 V
Protection
DC MCB 1000VDC/32A · DC SPD 1000VDC/40kA
Panel Efficiency
22.6%
Wind Load Resistance
2,400Pa
Weight/Surface Load
7,200Pa
Specs and inclusions may vary. Images are illustrative.
